J&M Bluetooth completely out now – Sena SMH10 Bluetooth in!

 It took a while but I finally relented and dropped the uber-expensive J&M Bluetooth headsets.  They were working just okay and with limited battery life.  The wind noise was often more than I could take after I cranked up the volume to hear my pillion.   The final straw was the breaking of the clip that holds the J&M radio into my Nolan N103.  I had to resort to double sided tape to keep it on for a time.

If anyone is looking for either of these headsets, I have them for sale cheap on EBay.

Nolan N103 JM Audio Corp HSBLU277EDRIN103 motorcycle Bluetooth headset

 Nolan N103 Headset on Ebay

JM Audio Corp HSBLU277EDRUN motorcycle Bluetooth headset

 Clamp on J&M Headset on Ebay

This spring I opted for the Sena SMH-10s and have never looked back.  Although I never have achieved the level of integration with the RT that I had hoped for, I am in love with them.  The wind noise is all but completely eliminated, the intercom works flawlessly and the Zumo 660 interrupts for directions just long enough before it returns to the intercom or music.

The music sharing feature is wonderful as well.  Using the Zumo as a media player I can press the jog dial for 1 second and instantly we both have music.  I still get directions as needed from the Zumo.   Tapping the dial again I quickly get back into intercom mode.

I also did an 8 day trip with a group this spring and we were able to pair several people together, which worked wonderfully as we wound through the mountain roads of Appalachia.  Even with heavy rain and fog we had great range and clarity.

 Thanks for reading.  This article is for informational purposes only and remember your mileage may vary.
 If you found this useful please click the Google +1 link below, share on Facebook,  follow me on Blogspot or click through on the adds at the top of the page. That helps me keep the blog going. Your comments and feedback are always welcome.
 Cheers
 Blaine


J&M Bluetooth system install – Final Chapter

Final Chapter

Ok, sorry, it’s been almost a year since I started the J&M Audio installation.  Unfortunately I do not have good news to report.  While J&M is a great company to work with, I can’t say much good about their Bluetooth products I installed.

After working with everyone at J&M, including the owner, we never get the system to perform properly while underway.  I was able to get everything working properly while sitting in the garage at one point.

Over the course of several months I returned my head set to them for exchange and spent many hours trying different techniques to get the system running and working as intended.  The plan was to be able to listen the bike’s audio system through the headsets, be able to use a cell phone, and communicate with my passenger.  This was never achieved.  Frequently the system would work sitting still in the garage, but within minutes of rolling out of the garage the link would drop and I would lose the connection with my passenger as well as the bike.  Frustration always ensued as I stopped on the side of the road over and over again in a vain attempt to try any number of things to get the system re-linked.

The last straw was when I exchanged the Dongle for a new one only to have it make the situation worse.  At that point I pulled everything off of the bike and returned it to J&M.  After several months of working with them they were gracious enough to refund my money for those components, even though they have a no refund policy on their Bluetooth gear.  I did keep the headsets, which seem to work well together without the use of the Dongle.  I’m now regretting that and need to contact J&M again since the retention clip broke on the Nolan setup so the radio now will not stay attached to the helmet.  I’m now forced to hold the unit in the helmet with double sided tape.

J&M has a great reputation for their wired headsets and Harley systems and they are good company to deal with, but I can’t recommend to anyone to buy and install the dongle system on their BMW R1200RT.

If anyone has found a system that actually works properly, please pass that information along to me in a comment.

Thanks for reading.  This article is for informational purposes only and remember your mileage may vary.

If you found this useful please click the Google +1 link below, share on Facebook,  follow me on Blogspot or click through on the adds at the top of the page. That helps me keep the blog going. Your comments and feedback are always welcome.

Cheers and happy riding.

Clearwater Glenda LED Install on the 2010 BMW R1200RT

Somewhere along the line I decided that I needed additional lighting on the front end of my RT.  The stock headlight is OK and I don't ride that much at night, but the area I live in is heavily overpopulated with white tail deer.  Anything that can help you spot them on the side of the road is worthwhile.

I was also interested in increasing visibility from the front. I'd already installed the  BMW Supplemental Rear Brake Light  (63000445578) with the 2005 and up R1200RT specific harness (61000445579), on the back end so I think I'm covered there.  The idea of creating a "triangle of light" on the front of the bike was very appealing.

I looked at a large number of auxiliary lighting kits of halogen, HID and LED variety.  Eventually I settled on LED due to the relatively high output and low power consumption.  While more expensive than some halogen kits they are still less that many HID kits.  The LEDs are also simpler to install with no ballasts required.

I wanted a clean installation on brackets that look like they are designed for the bike, rather than a tack on.  I was hoping to avoid spoiling the line of the bike as much as possible.

Eventually I settled on the Clearwater Glenda Led kit for canbus BMWs, with BMW R1200RT specific fork mount brackets. The few reviews I was able to find were positive and it seemed like the lights would be high quality. The brackets actually attach to the front fender mounting locations as you will see in the pictures that follow.

The lights are expensive but patience payed off and  A&S BMW offered a 15% off sale on everything, plus free shipping and a couple of ROK straps thrown in. That helped to ease the pain a little.

Here is a look at the contents of the Clearwater Glenda kit.

Clearwater Glenda Kit cables and Brackets

The Glenda LED lights

The power cables on the back of the lights are permanently attached and include 3 wires in each harness covered by a black sheeth.  The Clearwater Instructions warn not to connect these directly to the battery or damage to lights may occur.

The other included wiring is a battery cable with ring terminals and a fuse holder at one end, and the canbus compatible relay on the other.  No additional wiring is required.

Wiring Harnesses

Canbus Relay

There is also a dimmer at the end of one cable. This is used to reduce the brightness of the lights during routine driving so as not to blind oncoming drivers.  The wiring harness includes a lead that is connected to the high beam circuit.  This connection allows the lights to be operated at full brightness on high beam and then automatically return to normal on low beam.

Dimmer Assembly with Bracket

The first order of business is to remove the left side tupperware.  Like with most work on the RT, its the only way to get the wiring and other components.  If you need help with that you can watch this YouTube Tupperware Video or search the forums for instructions.

Once that was out of the way I took a look at the mounting location and installed the lights loosely on the brackets and then the brackets onto the fender mounts.  They will need to be adjusted later.

Note the 2 fender mounting points

The original fender mounting screws are reused.  The lights mount to the brackets with supplied 1/4-20 Allen head screws.  The lights will be adjusted later using a square to make them perpendicular to the ground, per the Clearwater instructions.  At that point I'll add blue Locktite and tighten everything securely. A wire tie was added later to keep the wire tight to the forks.

Left light attached to the bracket and mounted to the fender mounts

I routed the harness along the OEM wiring harness and the J&M Audio cables.  Everything is secured with heavy nylon wire ties.

Battery Harness Routing

The Can bus relay is mounted near the headstock along a frame member.  Be careful to allow for lock to lock steering and suspension movement.

Canbus Relay Installed

The kit includes 3 posi-twist connectors for making this splice.  While they probably would have worked fine I elected to solder and shrink wrap the connections.  The ends are pinched off to help avoid weather intrusion.

Shrink Wrapping Splices

An outer layer of shrink tube was added over the three splices.  There are about a dozen wires coming together here and I wanted to ensure a permanent watertight connection and reduce the bulkiness of the connectors.

Outer Shrink Wrap Over Splices

A switched power source is needed for the lights.  By connecting the canbus relay to the headlamp circuit with the provided connectors the lights are only on when the bike is running.  The other connection is for the high beam, which brings the lights to full brightness when the high beams are activated.  I did utilize the supplied posi-twist splices for this connection.

Connections to Headlamp connector Low and High Beam Circuits

This was my first thought for where I wanted to put the dimmer.  I did not want to drill any holes in the bike to mount the dimmer.  I quickly determined that this would not work since it interfered with the wiring harness for the left switch assembly when turning lock to lock.

Trial Dimmer Location

I settled on removing the bracket and mounting the dimmer directly on the wiring harness for the left switch assembly.  I don't expect to need to adjust it frequently, but its in easy reach if I need to.  the recommendation from Clearwater is to set the dimmer to about 20% and let it go to full brightness on high beam.  Reports from other users appear to confirm this setting.

Dimmer Control at Left Control

Here are a couple of shots of the finished installation on the Clearwater LEDs on my R1200RT

Clearwater LED Install Closeup

Clearwater LED install complete on my 2010 R1200RT

Conclusion

The lights,brackets and wiring seems to be well thought put and well made.  The light output allot of light and the dimmer / high beam combination is a nice feature.  They seem to complement the bike, as much as any aftermarket light can, without ruining the lines of the bike.

My only nitpick is the number of wires that need to be spliced and stuffed up into the nose.  This area is very tight and it seems like every farkle I add needs space in this area.  Also the kit could be installed easier if there was some sort of waterproof connector that everything plugged into instead of the posi-twist splices.

Thanks for reading.  This article is for informational purposes only and remember your mileage may vary.

If you found this useful please click the Google +1 link below, share on Facebook,  follow me on Blogspot or click through on the adds at the top of the page. That helps me keep the blog going. Your comments and feedback are always welcome.

Cheers

J&M comm system install - Stereo vs. Mono for Zumo Audio Output

Some readers have commented that it seems odd that the factory stereo connector for the BMW NavIV  only supports mono rather than stereo input.

I agree, it is a bit odd, but there is an explanation.  Apparently that input to the R1200RT's factory stereo is only designed to provide the ability to get turn by turn prompts from the NavIV.  Any input on that cable will interrupt the audio that is playing by reducing the level, or "muting" it for the duration of the input.  This makes sense with turn by turn prompts but does not really work well with other sources such as the Zumo's MP3 player or book reader.  The same would hold true if I had the 665 with XM.

I have considered connecting the Zumo 660 to the factory iPod connector in the glove box.  Connecting it there would provide stereo audio into the RT's system from the Zumo.  I elected to use the factory Nav IV connector because I plan to use it primarily for the turn by turn output from the Zumo. If I connected the Xumo to the iPod connector I would have to switch the audio input on the radio control panel to "iPod" and would only be able to hear the Zumo at that point.  My preference right now is to use the FM radio and the USB stick for MP3s then have that source interrupted for turn by turn prompts from the Zumo.  I liked retaining the use of the factory multicontroller for changing channels, MP3 tracks, etc.

I'm hoping that this weather breaks soon so that I can get out and ride with the system and let you know how everything is working in the real world.

I would be very interested in hearing from anyone that has done a similar install.

Hope you enjoyed the write up.

Cheers.

J&M comm system install for Shoei Multitech

Shoei Multitec install at J&M

Since I was having trouble installing the J&M headset on the Shoei, and I now had the wrong helmet speakers, I elected to send it off to J&M and have them do the install.

I contacted J&M via email and let them know that I was was sending the helmet and headset to them and quickly received a call back from Brian in sales.  I explained my issue with the install and we discussed the emails that John and I had exchanged regarding the standard vs thin helmet speakers.

I provided Brian with the UPS tracking number and we exchanged a few phone calls until the tracking number showed up on the UPS web site.  At that point I provided my credit card number to pay the $40.00 installation fee and the cost of return shipping. Communication was great.

J&M turned around the installation quickly and had the Shoei on it's way back to me in about a day.  I had an email in my inbox with the FedEx tracking number as soon as it shipped. The helmet was delivered via FedEx on Saturday, New Years Eve.  Everything came back double boxed and in the helmet bag as I had sent it to them.

Here is how the install came out.

You can see that the bottom of the bracket extends a bit below the helmet and the headset controller.

J&M Install on Shoei Multitech Showing Bracket from the Side

As with the previous headset there is a bit of a gap created by the microphone cable passing between the shell and the liner.  The speakers sit perfectly flush and sound good.

J&M Install on Shoei Multitech Bottom View

I always seem to have trouble orienting the microphones on headsets so I added a small white paint mark with a paint pen to make it a bit easier to identify the side that faces the rider.

Mic marked with white paint pen

I paired the unit with the passenger link on the BlueHub Dongle.  I'm still not 100% sure which pairing button corresponds to which antenna.  The buttons are not labeled so I experimented a bit and I think I have it right. I still plan to contact J&M to make sure.

I used the button closest to the wire, and facing the front of the bike, for the rider the the other for the passenger.  The blue indicators now flash alternating front and back when everything is linked up.

With both helmets now paired we can listen to music coming from the bike and talk via the intercom feature. The mic is always open since there is no vox.  This should mean no delays or cut off speech when someone starts talking and that appears to be the case.  This had been a huge problem with the previous iMC headsets I had.  Often it was difficult to get the vox to activate and then they would shut off in mid sentence at times.  At other times the mic was always open.

I ran a quick test of the Droid Bionic plugged into the included cable and that seems to work OK.

There is no mute of the music when someone is speaking so you may have to turn down the music to hear each other.  The music seems to be significantly louder than the intercom at this point. There is also a bit more noise in the headsets than what I would have expected. This will all have to be tested in real world riding conditions when the weather improves.

The total cost of the Shoei install was about $75 when including shipping both ways.

Everything is now installed and operating as advertised.  I will update this when we've had a chance to test it all out while riding.

Happy New Year!

Cheers.

J&M comm system install on the 2010 BMW R1200RT

I've been frustrated with the cheap  iMC Motocom BTS200 Bluetooth headsets that only served as an intercom system for me and my passenger when riding two-up since I brought the bike home in July of 2010.  I had been able to link to the GPS, but only if I was willing to give up the intercom feature.  These features were supposed to work together but I tried many times to make it work without success.  In addition the VOX feature on the BTS 200 has a long delay and tends to shut off in the middle of sentence making it a pain to use.

I also had a desire to integrate a headset and intercom with the bikes built in audio system and Garmin Zumo 660 Navigation so that I could take advantage of the audio controls on the bike as well listen to MP3s and FM radio on my headset as well as hear turn by turn directions from the navigation unit.

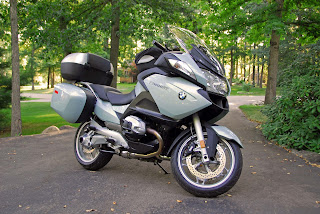

2010 R1200RT

I researched every system and headset I could find over the course of a year. None of the wireless systems I found were designed to be integrated with the factory audio system.  Having paid a small fortune to get it on the bike I was determined to find a way to integrate the system.  I did consider several custom solutions that all depended on working from the optional rear speaker connector, but none panned out.

I looked into activating the factory Bluetooth option on the bike, but all of the reviews that I could find indicated that it only worked well for a single rider and in some cases only seemed to work well with BMW helmets.  There we several reports of poor audio quality as well.

Enter J&M Corporation.

As is well known J&M makes systems for many bikes including BMW models.  J&M did not initially have a system for the R1200RT.  I wrote the company several emails in 2010 and they assured me that a system was coming out for the RT.  They were already producing the helmet headsets that I would need to fit to my Nolan N103 and Shoei Multitec. Finally in 2011 they began releasing the components that I would need.

The final system would consist of 4 main components:

• Bluetooth helmet headset custom fitted to the Nolan N-103 HS-EBLU629EDRI-N103
• Bluetooth helmet headset of universal nature for the Shoei Multitec HS-EBLU629EDR-FL
• Blue Hub Dongle version 8 JBLU-BHDG08
• Blue Hub adapter harness for the R1200RT RABH-R12RT

As it turns out I would have two options for integrating the Zumo 660.  I could pair it to the rider headset as a second device, or I could devise  way to make it act like the factory BMW NavIV system and integrate with the factory stereo.  Had a realized the lack of integration with the Zumo vs the BMW NavIV I might have opted to install the NavIV instead.  Since I already own the Zumo 660 I opted to do my own integration with the factory system.


This would not be a cheap system to install at a list price of $1,599.96.  J&M ran a Black Friday 20% off special which brought the price down to a still substantial, but more reasonable $1,279.96 delivered.  After several emails back and forth with the owner of the company John Lazzeroni I ordered the complete system and it was delivered promptly via FedEx ground (indirect signature required.)

The order arrived well packed in recycled materials.

Recycled shredded catalogs or other paper used for packing.

Several boxes were packed inside in retail packaging.

Nolan N-103 Headset

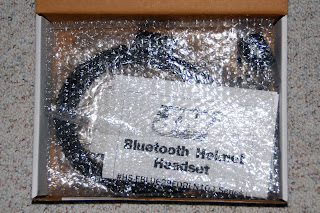

Nolan N-103 Headset opened up

Universal flip front headset for the Shoei Multitec

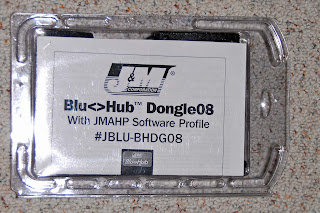

Blue Hub Dongle08

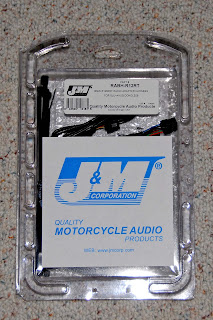

R1200R adapter Harness for the Blue Hub Dongle08

The first order of business was unpacking everything and laying it all out, followed by reading and re-reading all of the accompanying installation instructions.  The quality of the  instructions vary a bit for the various components and I will discuss that a bit later.  Instructions are included in each kit and most of them are also available on the product pages at the J&M web site.

Here is what is included in each of the packages.

N-103 Headset kit

The N-103 headset kit includes a replacement trim piece that houses the battery and on-off switch, helmet speakers, the control unit, microphone with foam windsock and a universal power supply with an assortment of plugs for various countries mains.  The power supply has two cords, presumably to allow charging two N-103 kits with the same charger.  The charger does not fit the other universal headset.

Universal headset to fit most flip front helmets

Like the N-103 kit this universal kit contains the helmet speakers control unit, microphone with windsocks and a universal power supply.  There is no helmet trim for this unit and it mounts using a clamp system.

I'll cover the installation of these systems a bit later.

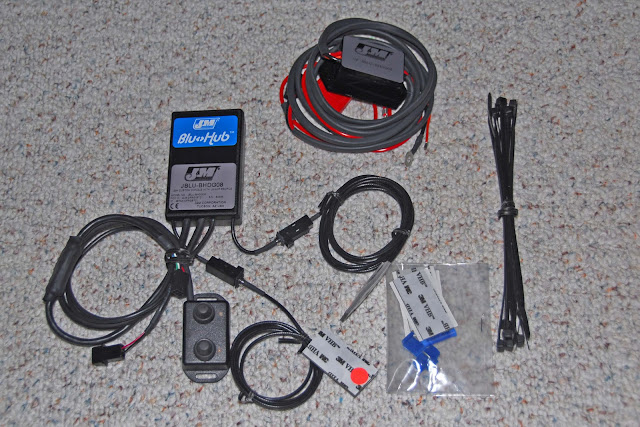

Blue Hub Dongle08 Kit

The Blue Hub Dongle08 kit includes the Dongle itself, 2 antennas, the switch for front and rear pairing, and a  power supply unit that connects to batter and switch power to run everything that connects directly to the bike.  Wire ties, electrical connectors and double sided mounting tape are also included.  This adhesive on this tape is really aggressive so be sure you have everything perfectly aligned when using it.

One thing I noticed is there there is no indication of which pairing button goes with which antenna or identification of rider or passenger.  Since one antenna is to be mounted in the rear of the bike and one in the front it's important that they be identifiable.

R1200RT adapter harness

The R1200RT dongle adapter harness includes the main harness, a small cable to connect a cell phone and wire ties.  The harness has plus that connect into the factory speaker wiring harness and to a connector on the Dongle08.  There are also connectors for expansion of the system to include a radar detector input (additional cable required.) The on-off switch controls output to the main speakers.  The Bluetooth system is always on when the ignition is on but the main speakers can be switched off if desired.

The cables seem to be of high quality and are plenty long enough.  I do have some concern that some of the connectors are not waterproof designs.

Onto the installation

Zumo 660 Integration Cable

The first thing that I needed to have is the Zumo 660 integrated into the bike if I wanted to be able to have it mute the music when turn by turn navigation commands are output.  The other option would have been to pair the riders headset to the Zumo but I wanted to be as integrated as possible.  In order to accomplish that I needed to pass the output signal from the Zumo into the factory connector where the BMW NavIV would have connected. I already had the Zumo power coming from the factory connected.  The dealer installed that for me when I took delivery of the RT.

The integration is complicated by the fact the RT audio input to the RT factory radio for the NavIV system is mono and the output of the Zumo 660 is stereo.  I also did not want to modify the RT wiring harness.

To accomplish the integration I constructed a simple cable with a couple of resistors to sum the stereo out put of the Zumo into a mono signal.  Connecting the two output wires together without isolation could potentially damage the output devices in the Zumo.

The following images illustrate how the integration cable is constructed.

BMW repair cable

Cable parts

Shrink tubing

Finished Cable

Cable Schematic

Once the cable is completed it is plugged into the audio output connector on the Zumo and into the audio input on the RT located near the steering head.

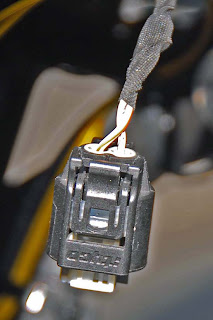

Here is what the audio input connector looks like.  You will find this connector in front if the steering head.

BMW R1200RT GPS NAV IV or Garmin Audio Connector

Here is the audio connector after connecting the adapter.  Note the blue connector body and yellow wires of the repair connector.

BMW R1200RT GPS NAV IV or Garmin  Audio Connection

 Here is a view from the front with the nose removed.  You can see both connectors and the repair connectors inserted allowing the Garmin to get power and output audio to the RT.

BMW R1200RT GPS NAV IV or Garmin Audio and Power Connections

Helmet Installation

Nolan N-103 Install

I began the J&M installation with the helmets starting with the Nolan N-103.  The first order of business is to remove the liner, cheek pads and trim from the N-103

Liner and cheek pads removed.

Next I measured  and marked the N-103 for a cutout that is required for the power switch assembly.  The was a part that I not very comfortable with so I checked myself several times before considering removing any material from the shell.

N-103 Marked for cutting the switch opening

I used a carbide burr in a die grinder to cut the prescribed opening in the shell and then cleaned up the opening a bit with a utility knife.  I scribed the marks with the knife ahead of cutting to help avoid chipping the paint.

N-103 after cutting

N-103 Trim Installed

Styrene and helmet speakers ready to mounted on Velcro

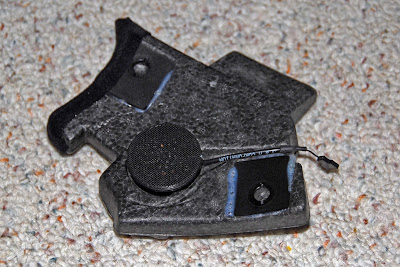

Helmet Speaker Installed

The helmet speakers fit perfectly in the factory openings and do not intrude into the helmet.  There are knockouts in the cheek pads that are removed to allow the sound to pass through.

Completed N-103 headset install

The control unit simply snaps in place in the factory opening designed for the Nolan N-Com system.  The finished product looks like it was made for it, as it is.

Shoei Multitec Install

The Shoei was next.  This turned out to be an issue.  The first problem I encountered was trouble mounting the clamp that secures the control unit to the shell.  I found it difficult to get the clamp to fit between the shell and styrene liner.  I found myself prying harder than I thought I should to get it to fit.

I emailed J&M about this issue and they said it should not be an issue.  I also found out that the headset I bought did not have the right speakers.  Apparently the helmet speakers in the kit are two thick and contact the wearers ears.  I was surprised to find this out since I had contacted J&M via email prior to ordering the kit and had specified the helmets I was using.

At this point J&M had suggested that I send the Shoi to them to complete the install.  I've since sent it to them and time will tell how that goes.  I'll provide an update when the process is completed.

R1200RT Install

Tupperware Removal

The first order of business on the RT was to strip off the tupperware.  I considered only removing part of it but quickly found it was going to be easier just to remove it all.  This was my first time removing it and it was a little intimidating at first but it turned out to be not that big a deal.  It does require some time and patience.  The trickiest part was removing the mirrors since there is a hidden screw and is located in the glass assembly.  There are details in the forums if you need help as I did the first time.  You can also find a video on removing the panels here Body Panel Removal.

Here is how the RT looked before I started the J&M install.

As you can see most of the tupperware is removed with the exception of the tail piece.

There are five basic components to install

• The Blue Hub Dongle08
• The Power Supply
• The Adapter Cable
• The Front Antenna for the rider
• The Rear Antenna for the Passenger

Blue Hub Installation

The Blue Hub is on the large side so mounting options are somewhat limited. The cable lengths are plenty long to mount it anywhere under the seat area.  The only relatively short cable is for the pairing swithes and indicators.

Blue Hub Dongle08 Looking for a Home

Blue Hub Dongle08 Trial Fit

After a few trials I settled on mounting the Dongle in the very back of the tail section against the back wall.  I opted for Velcro attachment since I may need to remove it if I need to service the wiring back there or work on the tail light.  It would also be tough to remove it from there if the double sided tape was used.  There are no mounting tabs either so Velcro seemed like the best option.

Blue Hub Dongle08 and Rear Antenna Mounted

The dongle is mounted in the tail section and the rear antenna can also just be seen in this shot at the lower right hand corner.  The forward antenna cable reached the front faring area at the dash and the other cables were no issue.  Cables are routed along the frame.

Rear Antenna Mounted

The rear antenna services the passenger headset and is located close to the dongle against the inside of the read fender.  The red dot is up and outwards facing per the J&M instructions.

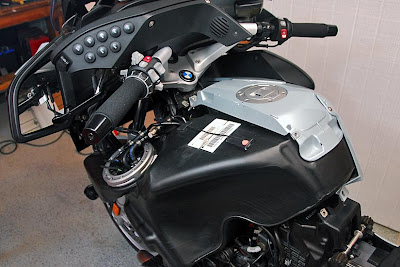

Front Antenna Mounted

The forward antenna services the riders headset and it located as close to the headset as possible by locating it on top on the plastic tank under the tupperware.  Again the red dot is facing up.  The paper tape backing has been replaced with black vinyl electrical tape. An extra piece of Velcro secures the cable.  I had originally located the antenna behind the instrument cluster, but this location was recommended by J&M.



Power Supply Install


I wasn't able to locate a suitable flat mounting surface near the battery so I fabricated a simple mounting plate out of sheet aluminum.  The plate is mounted using the existing fender mounting bolts and creates a clean flat mounting surface for the power supply.

Power Supply Mounting Plate

The power supply is mounted to the aluminum place via the provided double sided tape.

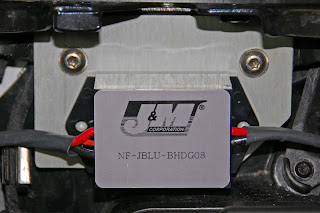

Power Supply Mounted on Aluminum Plate

 The power supply cables are routed directly to the batter posts.  Switched power is provided by a wire running to the Zumo power cable.  Utilizing this source allowed me to avoid splicing into the RT wiring harness and also keeps the Dongle alive for a short time after the ignition is switched off.  Current should not be a issue since the power supply contains a relay, as does the adapter harness.

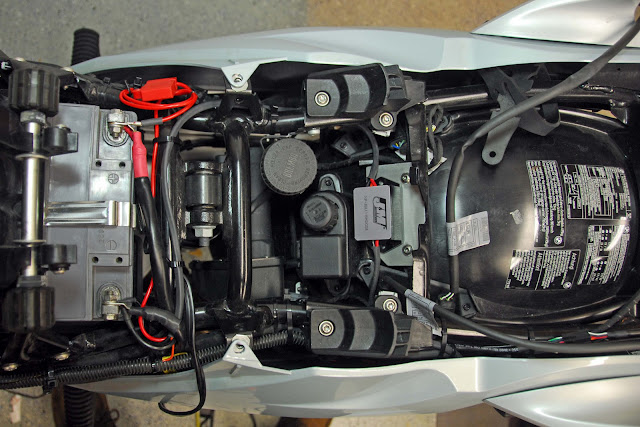

Power Supply and Other Wire Routing

In the lower left you can see the split loom tubing that houses the adapter harness wiring, switched power and front mounted antenna cable.  At the top left is the supplier bright red fuse holder that contains a 5 amp fuse.

The Split loom runs along side other wiring and is securely fastened with wire ties.

R1200RT Adapter Harness Installation

I mounted the adapter on the frame behind the headlamp assembly at the center of the photo.  The instructions indicated attaching it to the nose piece, but I felt that would make removal of the nose difficult.  This way there are no connections from the nose piece to the J&M system with one minor exception.  It's not visible in any of the photos but the forward antenna is mounted to the underside of the speaker cover with Velcro and is easily removed when there is a need to remove the dash.  In this photo you can also see the speaker connections in the top left.  I later found that I had to route these wires slightly differently along the back side of the frame rather than the front in order to get the nose to fit without interference.

Adapter Installation

Pairing Switch Mounting

The paring switch is a bit awkward.  My first instinct was to mount it out of sight under the seat.  I  later thought that given the issues that Bluetooth can have with paring I would prefer to be able to see the indicator lights to know what tehe system is doing and be able to reset it without removing the seat if needed.  Given that criteria and the short cable I elected to mount it underneath the luggage rack just ahead of the tail lamp assembly.  It is barely viable when standing next to the RT.  Be aware that the front riders headset is controlled by the button farthest away from the cable.  The one closest to the cable controls the passenger headset.

Paring Switch

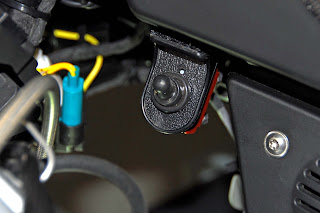

Speaker on/off switch Mounting

The final piece to mount was the speaker on/off switch.  This switch is very bulky and has a short cable attached to the adapter harness so the options are limited.  The instructions called for drilling a hole in the dash panel to mount the switch.  I was not happy with drilling a 15/32 hole in my dash board to I looked for a different solution.  The bracket I have here is not ideal, but it is working and did not require any modifications to the RT.

Supplied Speaker on/off Switch and  My Bracket

Speaker on/off switch and bracket mounted with Velcro

System Operation

Pairing instructions are included with both the headsets and the Blue Hub Dongle08.  Its a bit confusing which paring button is which.  It turns out that the one that is closest to the cable is for the passenger and the one on the end is for the rider.  I experimented with paring with each of them and that seemed to work the best and matches the instructions that I received from J&M tech support.

My first impression is that once paired the audio quality is very good in the Nolan.  The speakers can play quite load and the distortion is not bad.  The bass response is just OK.

I did notice nose in the headset anytime the Bluetooth radio is activated in the headset, even if it is not paired or linked.  This is not noticeable while moving as it is masked by even modest wind noise.

When operating the units it seems to be important to have the helmet turned on before the ignition is switched on.  When switching on the bike first the link does not always occur.  If the link is broken for some reason, such as stepping away from the bike, it has trouble re-linking.

I tested the system with both the FM radio and a USB drive with MP3s and both worked well and does the handlebar mounted volume control.  The volume on the headset does reset each time the power is cycled on it.

I did test Pandora Radio on the Bionic and it worked very well using the provided J&M cable. I still have to test making calls on my Droid Bionic when connected to the J&M system.  The phone can be used with the cable or linked to the individual headset.

Conclusion

The system took a good deal of time to install, the better part of two days working at a leisurely pace and with interruptions.  While expensive, it seems to deliver as promised.  I will have to reserve final judgement until I get the Shoei back and test the intercom features and then test it all in actual riding conditions.  That wont happen for a while here in Michigan.

Thanks for reading.  This article is for informational purposes only and remember your mileage may vary.

If you found this useful please click the Google +1 link below, share on Facebook,  follow me on Blogspot or click through on the adds at the top of the page. That helps me keep the blog going. Your comments and feedback are always welcome.

Cheers

Blaine
